Introduction

The bottle cap making process is a critical part of bottle and container production. Although it is often seen as a small component, the bottle cap plays a major role in product protection, sealing, shelf life, and brand presentation.

A reliable cap manufacturing process must cover material selection, mold design, injection molding or compression molding, cooling, sorting, visual inspection, dimensional checking, and final packaging. Every stage affects the quality, consistency, and production cost of the finished cap.

This guide explains the cap making process in simple terms, so you can better understand how plastic bottle caps are produced and what factors influence quality.

Table of Contents

• What materials are used for bottle cap manufacturing?
• What is the cap making process?
• What are the key quality checks for bottle caps?
• How is automation used in cap production?
• What types of defects can occur during cap manufacturing? FAQ

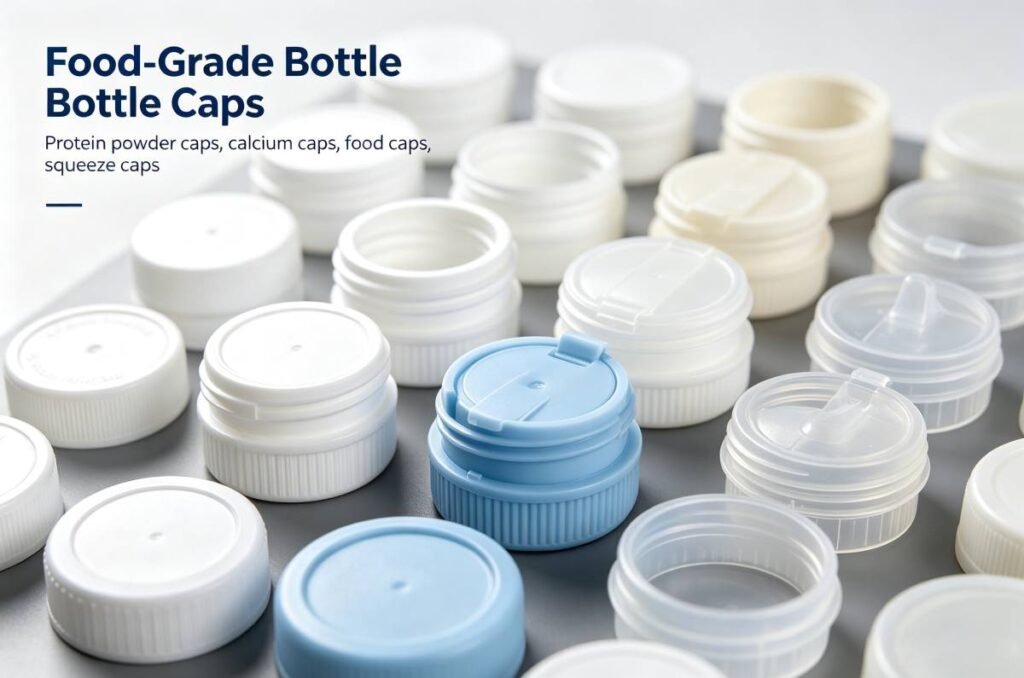

1. What Materials Are Used for Bottle Cap Manufacturing?

The most common material for bottle cap manufacturing is PP (polypropylene). PP is popular because it is lightweight, durable, resistant to impact, and suitable for many food, beverage, cosmetic, and pharmaceutical packaging applications.

Other materials may include:

• HDPE: High-density polyethylene, often used for closures that require good chemical resistance.
• LDPE: Low-density polyethylene, softer and more flexible.
• PET: Sometimes used in specific packaging systems, though PP remains more common for caps.
• PVC: Less common in modern food-contact packaging due to regulatory and environmental concerns.

Material selection depends on the bottle type, product contents, sealing requirements, chemical compatibility, temperature conditions, and cost targets.

2. What Is the Cap Making Process?

The cap making process usually starts with raw material preparation and ends with packaged caps ready for delivery.

Step 1: Material Preparation

Plastic resin pellets are dried and fed into an injection molding machine. Color masterbatch or additives may be added at this stage to achieve the required color, stability, or surface finish.

Step 2: Heating and Plasticization

The plastic pellets are heated inside the barrel of the molding machine. The screw rotates and pushes the material forward, creating a homogeneous molten plastic mass.

Step 3: Injection or Compression Molding

The molten plastic is injected into a cap mold under high pressure. The mold cavity defines the final shape, thread design, sealing ring, logo, and outer appearance of the cap.

Step 4: Cooling and Solidification

After filling, the mold is cooled to stabilize the cap shape. Proper cooling reduces deformation, internal stress, and dimensional variation.

Step 5: Ejection and Degating

The finished caps are ejected from the mold. Any excess plastic or connecting material is removed, depending on the mold design and production method.

Step 6: Sorting and Orientation

Caps are often fed into a sorting system that arranges them in the correct direction for downstream processing. This step is important for automatic inspection and assembly.

Step 7: Inspection and Testing

Visual inspection, dimensional measurement, thread checking, and sealing tests help reject defective caps before packaging.

Step 8: Packaging

Qualified caps are counted, packed into bags or boxes, and prepared for shipment to bottle manufacturers or packaging lines.

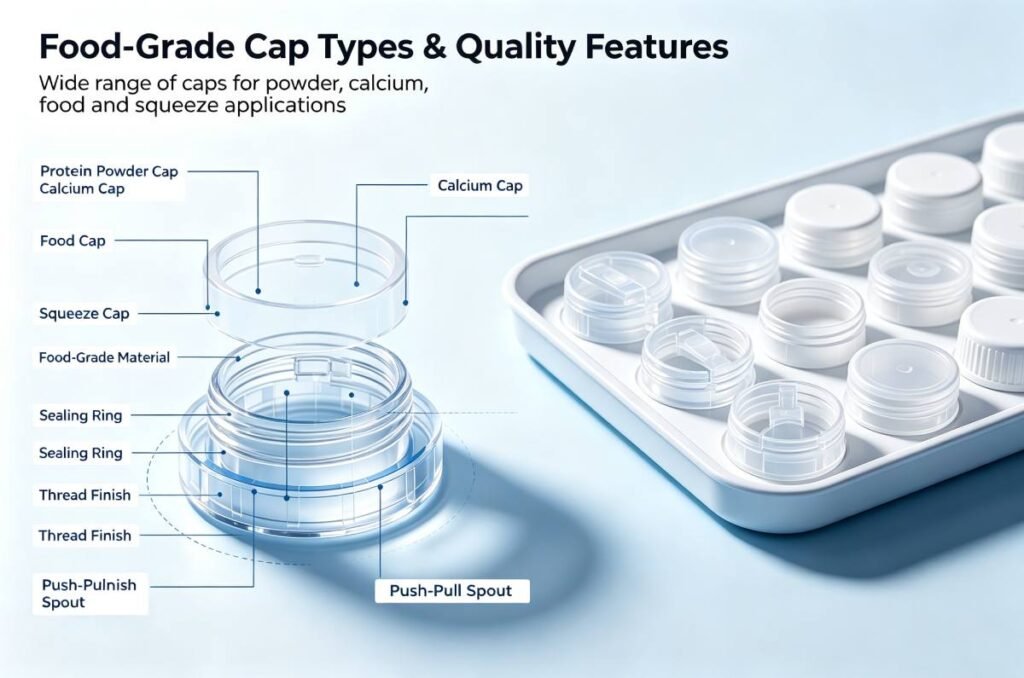

3. What Are the Key Quality Checks for Bottle Caps?

Quality control in bottle cap manufacturing helps ensure that each cap fits properly, seals reliably, and meets customer specifications.

Common quality checks include:

• Dimensional measurement: Checking cap diameter, height, wall thickness, and thread dimensions.
• Visual inspection: Looking for scratches, sink marks, flash, cracks, discoloration, or molding defects.
• Thread integrity: Making sure the cap can screw onto the bottle smoothly and correctly.
• Sealing performance: Testing whether the cap prevents leakage and protects the contents.
• Material compatibility: Confirming that the cap material is suitable for the product inside the bottle.
• Color consistency: Ensuring that caps match the required color batch after batch.
• Batch traceability: Keeping records of raw materials, production parameters, and inspection results.

4. How Is Automation Used in Cap Production?

Automation plays an important role in modern cap manufacturing. High-speed production lines can produce large quantities of caps with lower labor cost and better consistency.

Typical automatic systems include:

• Automatic injection molding machines: Stable material feeding, precise temperature control, and repeatable cycles.
• Cap sorting systems: Orienting caps automatically before inspection or assembly.
• Visual inspection machines: Detecting surface defects, missing features, and dimensional errors at high speed.
• Robotic handling systems: Picking, placing, and transferring caps between processes.
• Conveyor systems: Moving caps through manufacturing, inspection, and packaging stations.
• Counting and packing systems: Counting caps accurately and preparing them for packaging.

Automation is especially useful when producing caps in large volumes or when tight quality control is required.

5. What Types of Defects Can Occur During Cap Manufacturing?

Even with modern equipment, some defects can still occur during cap manufacturing. Understanding these defects helps improve mold design, process control, and inspection.

Common Cap Defects

• Short shot: The plastic did not fill the mold completely.
• Flash: Excess plastic along the parting line of the cap.
• Sink mark: A shallow depression on the cap surface, usually caused by uneven cooling or packing.
• Warping: The cap becomes distorted after molding.
• Crack: A fracture in the cap body, thread, or sealing area.
• Discoloration: Unwanted color variation between batches or within the same part.
• Poor thread formation: Incomplete or damaged thread structure, which may cause fitting issues.
• Seal ring damage: Defects in the sealing area that may affect leakage performance.

Defects can be caused by material moisture, incorrect temperature, wrong injection pressure, poor mold ventilation, insufficient cooling, or machine wear.

Conclusion

The cap making process may seem simple, but it involves many precision steps. From material selection and molding to cooling, sorting, inspection, and packaging, each stage affects the final quality of the bottle cap.

For manufacturers, understanding the cap making process is essential for improving production efficiency, reducing defects, ensuring consistent sealing, and meeting customer requirements.

If you are looking for a partner for cap production or cap handling automation, it is important to work with a supplier who understands both the molding process and the downstream handling requirements.

FAQ

Q1: How are plastic bottle caps made?

A: Plastic bottle caps are made by melting plastic resin, usually PP, and injecting it into a cap mold. After cooling and solidification, the caps are ejected, sorted, inspected, and packaged.

Q2: What material is used for bottle caps?

A: Most bottle caps are made of PP. Other materials include HDPE, LDPE, and PET, depending on the application and product requirements.

Q3: What is injection molding for caps?

A: Injection molding is a process where molten plastic is injected into a cap mold under pressure. The mold forms the cap shape, thread, sealing ring, and other features.

Q4: Why is cap inspection important?

A: Cap inspection helps detect dimensional errors, visual defects, thread issues, and sealing problems. This reduces customer complaints, leakage risk, and rework cost.

Q5: Can caps be made in different colors?

A: Yes. Caps can be produced in different colors by adding color masterbatch to the plastic resin during production.

Q6: What is cap sorting?

A: Cap sorting is a process that orientates caps in the same direction so they can be inspected, assembled, or transferred automatically.

Q7: How do you control cap quality?

A: Cap quality is controlled by monitoring material preparation, molding parameters, cooling time, dimensional accuracy, visual appearance, thread quality, and sealing performance.

Q8: What causes cap defects?

A: Cap defects can be caused by wet material, incorrect temperature, improper injection pressure, poor mold design, insufficient cooling, or machine wear.
