Product Introduction:
55 mm heavy-duty PET preforms are specially injection molded for blow molding large-capacity disposable and semi-reusable water jugs, widely applied to 12L, 18.9L standard 5-gallon water bottles.
We provide six mature standard neck constructions to fit different plastic caps and match all mainstream blow molding equipment. All raw materials adopt food-grade virgin PET, safe for drinking water packaging.
Core Technical Parameters Summary
- Available Neck Finishes: Pressure Neck / Pressure Neck With Support Ring / Short Thread / Long Thread / Fine Thread / Size 1 & 2 Tall Neck
- Raw Material: Food Grade Virgin PET
- Weight Range: 105g – 800g (varies by different neck types)
- Weight Tolerance: ±0.5g ~ ±2.0g
- Standard Color: Transparent Clear / Light Blue Tint; Custom Pantone color supported
- Preform Length: Customized based on neck type and preform gram weight
Complete Spec & Packing Table
| Neck Type | Gram Weight | Preform Length(cm) | Outer Dimension(cm) | Quantity Per Carton |
|---|---|---|---|---|
| Pressure Neck | 165g | 20.5 | 613431 | 99 pcs |
| Pressure Neck | 270g | 24.5 | 552541.8 | 68 pcs |
| Pressure Neck | 430g | 34.7 | 562636 | 43 pcs |
| Pressure Neck | 800g | 42 | 5818.543 | 26 pcs |
| Pressure Neck With Support Ring | 165g | 20.5 | 613531 | 99 pcs |
| Pressure Neck With Support Ring | 200g | 21 | 613431 | 99 pcs |
| Pressure Neck With Support Ring | 250g | 22.8 | 602442 | 76 pcs |
| Pressure Neck With Support Ring | 400g | 31 | 543334 | 55 pcs |
| Short Thread | 105g | 15.7 | 543242.5 | 154 pcs |
| Short Thread | 200g | 20.5 | 613431 | 99 pcs |
| Short Thread | 280g | 24.5 | 493632.5 | 66 pcs |
| Short Thread | 410g | 31 | 553234 | 51 pcs |
| Long Thread | 210g | 20.9 | 613431 | 99 pcs |
| Long Thread | 340g | 28.4 | 543033 | 51 pcs |
| Long Thread | 400g | 31 | 543334 | 51 pcs |
| Fine Thread | 165g | 20.5 | 613431 | 99 pcs |
| Fine Thread | 335g | 28.4 | 543233 | 51 pcs |
| Fine Thread | 620g | 38 | 584117.5 | 26 pcs |
| Fine Thread | 680g | 39 | 584017.5 | 26 pcs |
| Fine Thread | 700g | 40 | 584217.5 | 26 pcs |
| Size 2 Tall Neck | 130g | 18.5 | 543632.5 | 102 pcs |
| Size 1 Tall Neck | 215g | 22 | 613431 | 99 pcs |
| Size 2 Tall Neck | 210g | 22 | 4436.536.5 | 78 pcs |
| Size 1&2 Tall Neck | 305g | — | 542843 | 68 pcs |
| Size 1&2 Tall Neck | 405g | 31 | 543334 | 55 pcs |

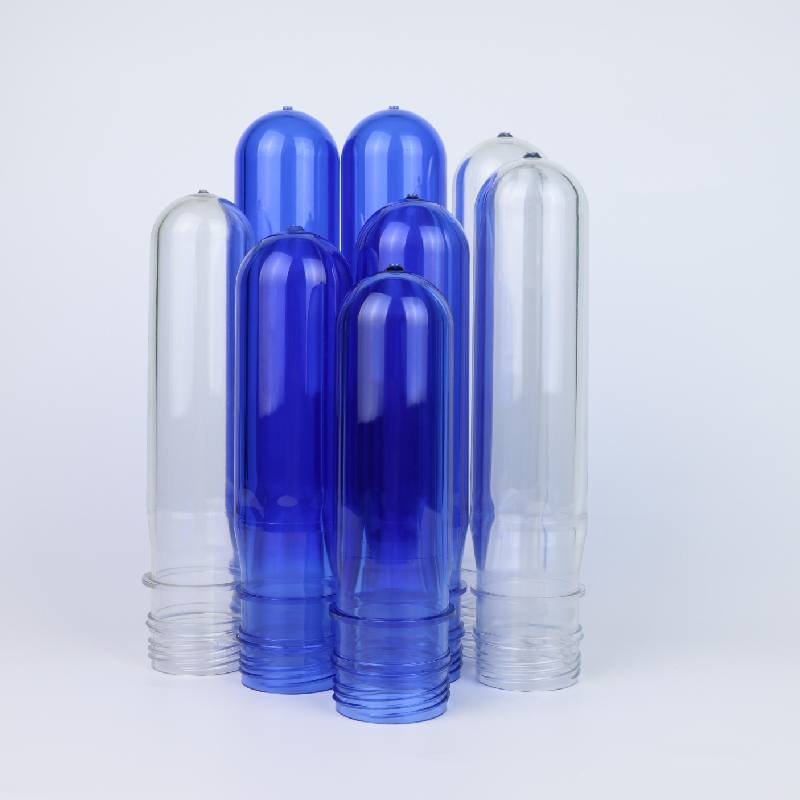

Six Neck Types Detailed Introduction

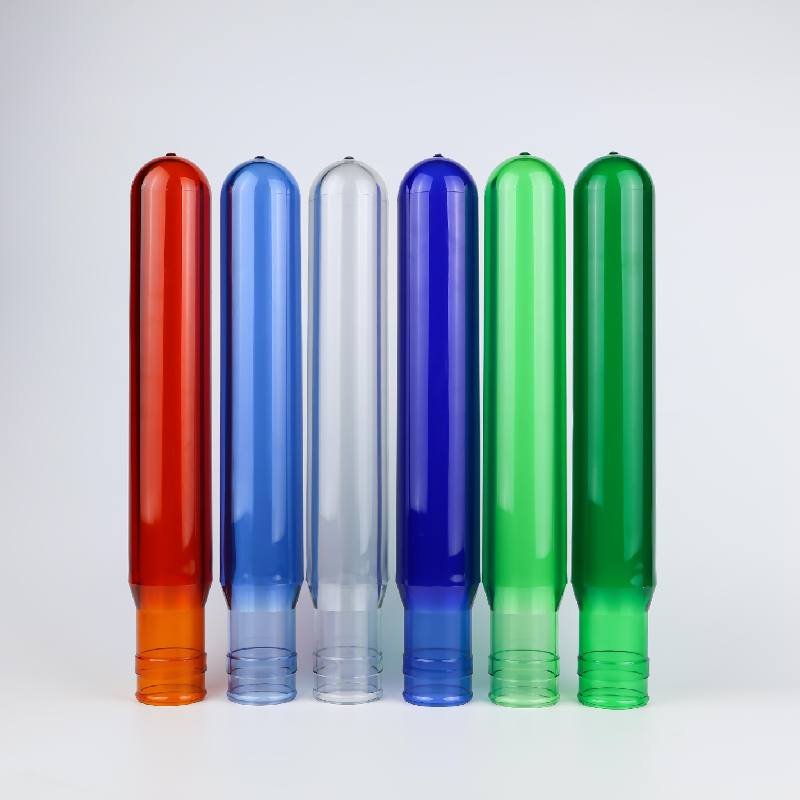

1. Pressure Neck
Standard disposable water jug neck, matched with 55mm snap-on one-time plastic caps.
Applicable gram weight range: 165g – 800g, mainly for single-use 5-gallon drinking water bottles.

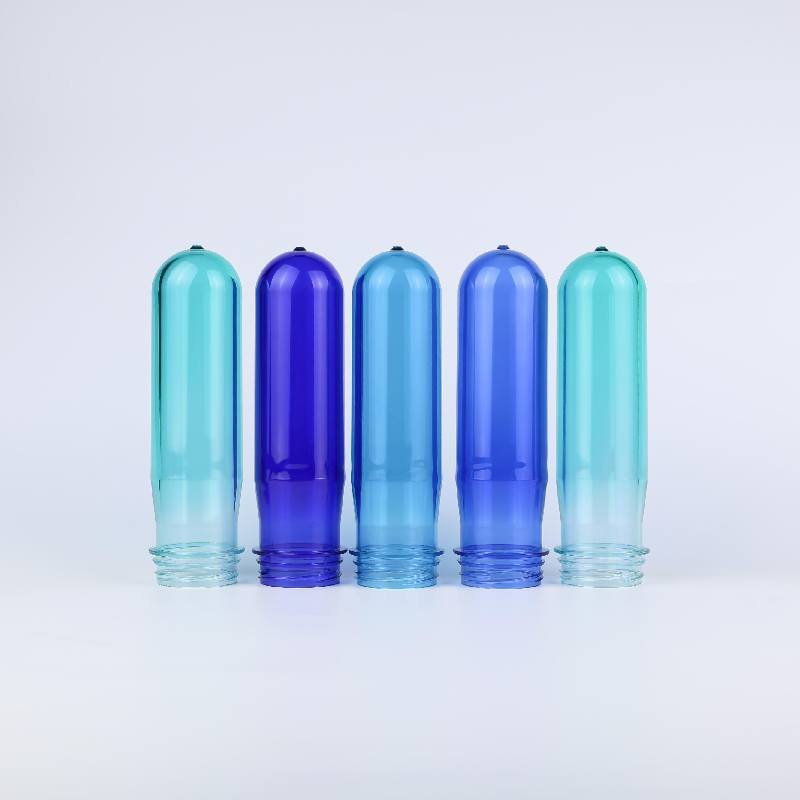

2. Pressure Neck With Support Ring
Reinforced snap neck with integrated support ring structure, effectively avoid neck crack during transportation and daily use. Designed for heavy-duty disposable large water jugs.
Applicable gram weight range: 165g – 400g.

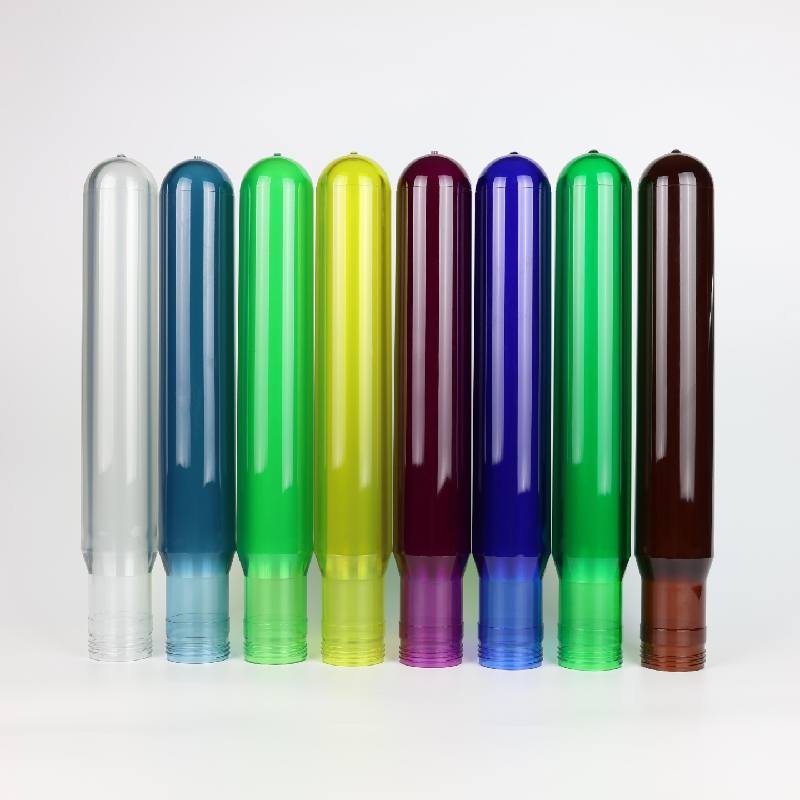

3. Short Thread
Short thread structure suitable for both disposable and semi-reusable water containers, compatible with matched composite short thread screw caps.
Applicable gram weight range: 105g – 405g.
4. Long Thread
Extended long thread design for repeated use semi-reusable jugs. Thread meshing is tight and stable, ensuring reliable sealing after frequent opening and closing.
Applicable gram weight range: 210g – 400g.
5. Fine Thread
Fine pitch thread specially customized to match 55mm fine thread screw caps, enabling smooth, effortless cap twisting and perfect sealing effect.
Applicable gram weight range: 165g – 800g.
6. Size 1 and 2 Tall Neck
Special high neck structural design, compatible with non-standard blow molding production lines and dedicated supporting cap systems, for special customized water jug projects.
Applicable gram weight range: 130g – 405g.
Download Full Detailed Specifications
The above is a brief overview of our production capacity. Complete data including models, weights, dimensions and carton packing quantities are available in the full specification sheet for download via the button below.
The file is categorized by product line with clear tables, which can be exported as PDF for catalog sharing and quotation reference with clients.
Core Product Advantages
- Six mature universal neck styles fully cover disposable & semi-reusable large water jug market demands
- Heavy-wall high-strength injection molding, finished bottles have good pressure resistance, fit 10L to 20L large-volume water containers Precise injection thread & neck dimension control, ensure perfect matching and sealing with supporting caps
- Strict raw material inspection, all PET materials reach food contact safety standard for drinking water packaging
- Flexible order solution: standard in-stock preforms for fast delivery; customized color & weight acceptable
- Custom new mold development service supported for special size, neck structure requirements
- Sample confirmation available before mass production to avoid dimensional deviation
Main Application Scenarios
- 12L / 18.9L 5-gallon disposable bottled drinking water
- Reusable large water jugs for water dispensers
- Large capacity liquid plastic containers for purified water factories
- Custom blow molding large plastic liquid packaging bottles
Internal Links
Browse our other neck‑size preform series: 29‑25 / 30‑25 30mm PET Preforms
Looking for other preform sizes? Check our full range of PET Bottle Preforms.
Browse finished goods: Squeeze bottles & food‑grade plastic containers.
Our PET Preform and Plastic Bottle Sample Showroom
Our factory showroom displays a wide range of PET preforms and finished plastic bottles in multiple sizes and custom colors. Customers can view different specifications of food-grade packaging samples, including PET preforms for edible oil, beverage and protein powder containers. We support custom mold development and color matching for your packaging projects.
Packing and Transportation
- All 55mm PET preforms are packed in standard export cartons with fixed quantity per carton as shown in spec table. Carton size matched preform length to prevent extrusion deformation during sea & land transport.
- Ship in bulk preforms instead of finished empty bottles, greatly save container space and cut down overall ocean freight cost for bulk importers.
Frequently Asked Questions
Q1: What’s the weight range of your 72mm thread neck PET preforms?
A: We supply 6 standard weights from 685g up to 1130g to meet different large container capacity demands.
Q2: Can I order blue or other colored 72mm PET preforms?
A: Clear is our standard stock color; we support custom light blue and any Pantone color according to your requirement.
Q3: Do you provide custom mold service for special 72mm preform sizes?
A: Yes, we accept new mold development and mold modification for unique neck, weight or dimension requests.
Q4: Is the PET material food safe?
A: All preforms are made of food‑grade virgin PET resin, compliant with food contact standards for edible product packaging.
